- 48 Ports 10/100/1000Base-TX with 4 Ports SFP/SFP+ (1/10GbE Port)
- Throughput (Mpps) 130.95 Mpps
- Switching capacity 176 Gbps
- SNMPv1, v2c, and v3, Spanning Tree Protocol (STP)
- Port mirroring, Traffic prioritisation, Advanced classifier based QoS
- VLAN tagging, Loop protection

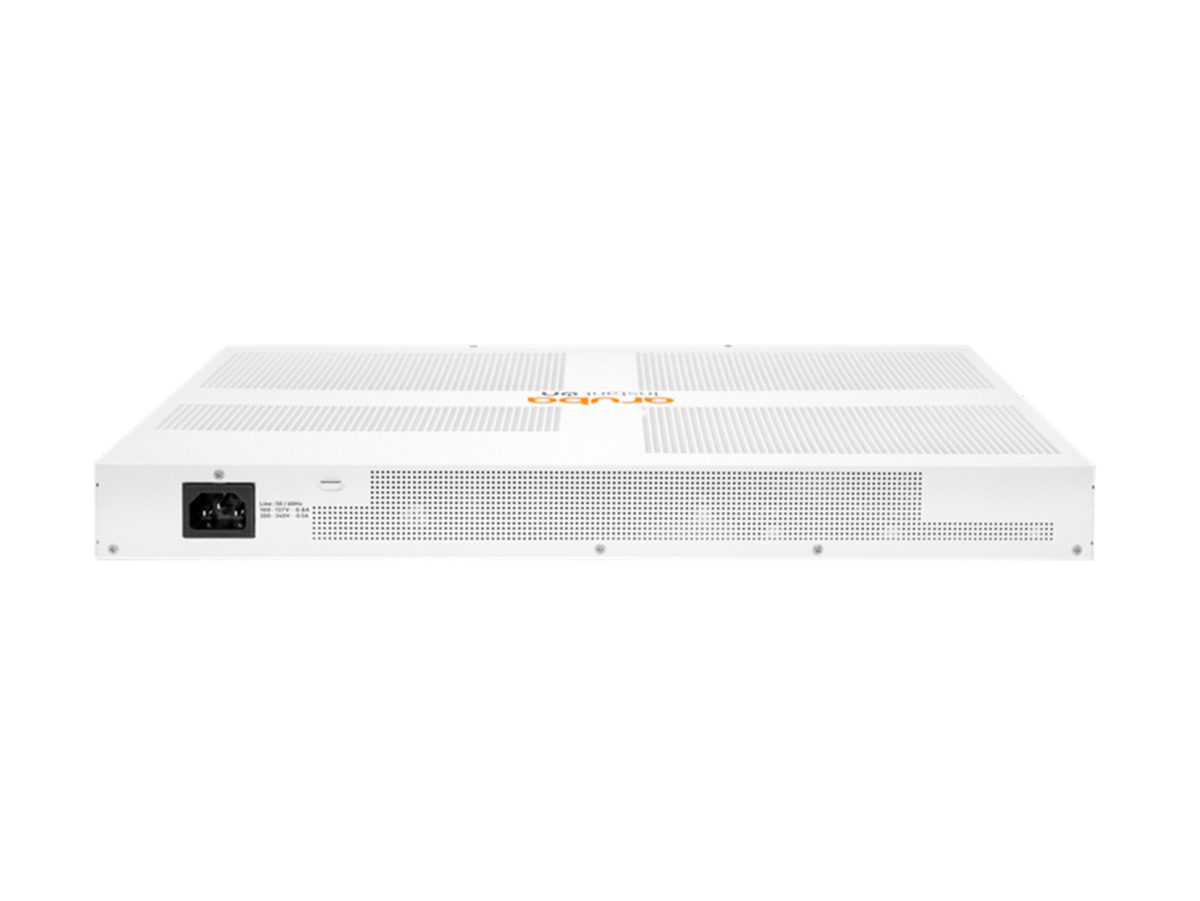

Switch Aruba Instant On 1930 48G/4SFP+ (JL685A)
15,199.-
มีสินค้าอยู่ 2
มีสินค้าอยู่ 2
ติดต่อสอบถามหรือขอใบเสนอราคา ด่วน!!!
โทร : 02-192-1713 หรือ 092-269-7700
Switch Aruba Instant On 1930 48G/4SFP+ (JL685A)
- 48 Ports 10/100/1000Base-TX with 4 Ports SFP/SFP+ (1/10GbE Port)
- Throughput (Mpps) 130.95 Mpps
- Switching capacity 176 Gbps
- SNMPv1, v2c, and v3, Spanning Tree Protocol (STP)
- Port mirroring, Traffic prioritisation, Advanced classifier based QoS
- VLAN tagging, Loop protection
มีสินค้าอยู่ 2
Specification
ข้อมูล
| น้ำหนัก | 3130 กรัม |
|---|---|
| SKU |
JL685A |
| Brand |
Aruba |
| Model |
(JL685A) Switch “Aruba” Instant On 1930 48G 4SFP/SFP+ |
| I/O Ports and Slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) |
| Memory and Processor |
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet |
| buffer |
1.5 MB |
| Mounting and enclosure |
n/a |
| Throughput |
130.95 Mpps |
| Switch Capacity |
176 Gbps |
| MAC address table size |
16,000 addresses |
| Frequency |
50/60 Hz |
| AC voltage |
100 – 127 / 200 – 240 VAC |
| Management |
Aruba Instant On solution; Web browser; SNMP Manager |
| Dimension |
44.25 x 28.24 x 4.39 cm |
| Weight |
3.13 kg |
| Warranty |
Warranty |
